High Brightness Energy Saving Full Color Outdoor Fixed LED Display for Advertising
The Outdoor SMD LED Display use state-of-art outdoor application LEDs, the display brightness can be comparable with DIP oval LED Display but with much wider viewing angle reach to 140 degree both horizontal and vertical. The LEDs has the advantage of UV against.
Features of the outdoor SMD LED Display:
*Wide viewing angle: Horizontal 140degree, Vertical 140degree
*Weatherproof to IP65 standards
*UV against
*Easily configured for various size and aspect ratios
*Brightness from 6000 nits onwards
Functions :
1. High refresh rate: With NOVA STAR control system, no scanning line when photographed
2. High gray level: 256 RGB each ,display 16.7M colors ,vivid and perfect video effect
3.High resolution: The most apparent features of the new generation of LED display
4.Good color uniformity: With brand Lamp Nationstar and high refresh MBI5124 IC.
5. High Brightness: 6000-8000 cd/m2 ,brightness automatically adjusted
6. High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time
7. Long life span: over100,000hours, warranty from 2 to 5 years.
8. You need = We design : Provide Personal- Customized led offer
Feature
1. Full-color LED display is composed of RGB trichromatic leds, 36 bit color can be shown, and the real-time, synchronous display all kinds of information, such as 2 d or 3 d animation, video, television and live streaming video content.
2 .Screen after use for a long time still can keep perfect quality and white balance and enough brightness.
3. LED optical design, high precision, the RGB tricolor LED the far field of view perfect match, in order to make sure from any Angle can be the perfect reappearance of video picture
4. High quality LED chips, anti static, high wavelength stability;
5. Advanced packaging equipment, guarantee the quality and life expectancy;
6. Has a large Angle, color uniformity, low failure rate and easy maintenance.
7. Standard processing technology to ensure that each row and each column tube at the same level, ensure the stability of the clear picture.
Outdoor Advertising LED Display Other Corresponding product specifications :
P3mm outdoor Advertising led screen
P3.91mm outdoor Advertising led screen
P4.81mm outdoor Advertising led screen
P4mm outdoor Advertising led screen
P5mm outdoor Advertising led screen
P6mm outdoor Advertising led screen
P8mm outdoor Advertising led screen
P10mm outdoor Advertising led screen
P16mm outdoor Advertising led screen
P25mm outdoor Advertising led screen
P31.25mm outdoor Advertising led screen
| LED Chip |
| No. | LED constitution | Types |
| 1 | 1R1B1G | Epistar 3in1 SMD |
| 2 | Red wavelength (dominant) | 620~625 |
| 3 | Green wavelength (dominant) | 525~530 |
| 4 | Blue wavelength (dominant) | 470~475 |
| Module Specifications |
| 1 | Pixel Pitch | 8mm |
| 2 | Drive mode | constant current |
| 3 | Module Size | 256mm × 128mm |
| 4 | Module Resolution | H32dots × 16dots |
| 5 | Module Pixles | 512 dots |
| 6 | Driving Method | 1/4 scan |

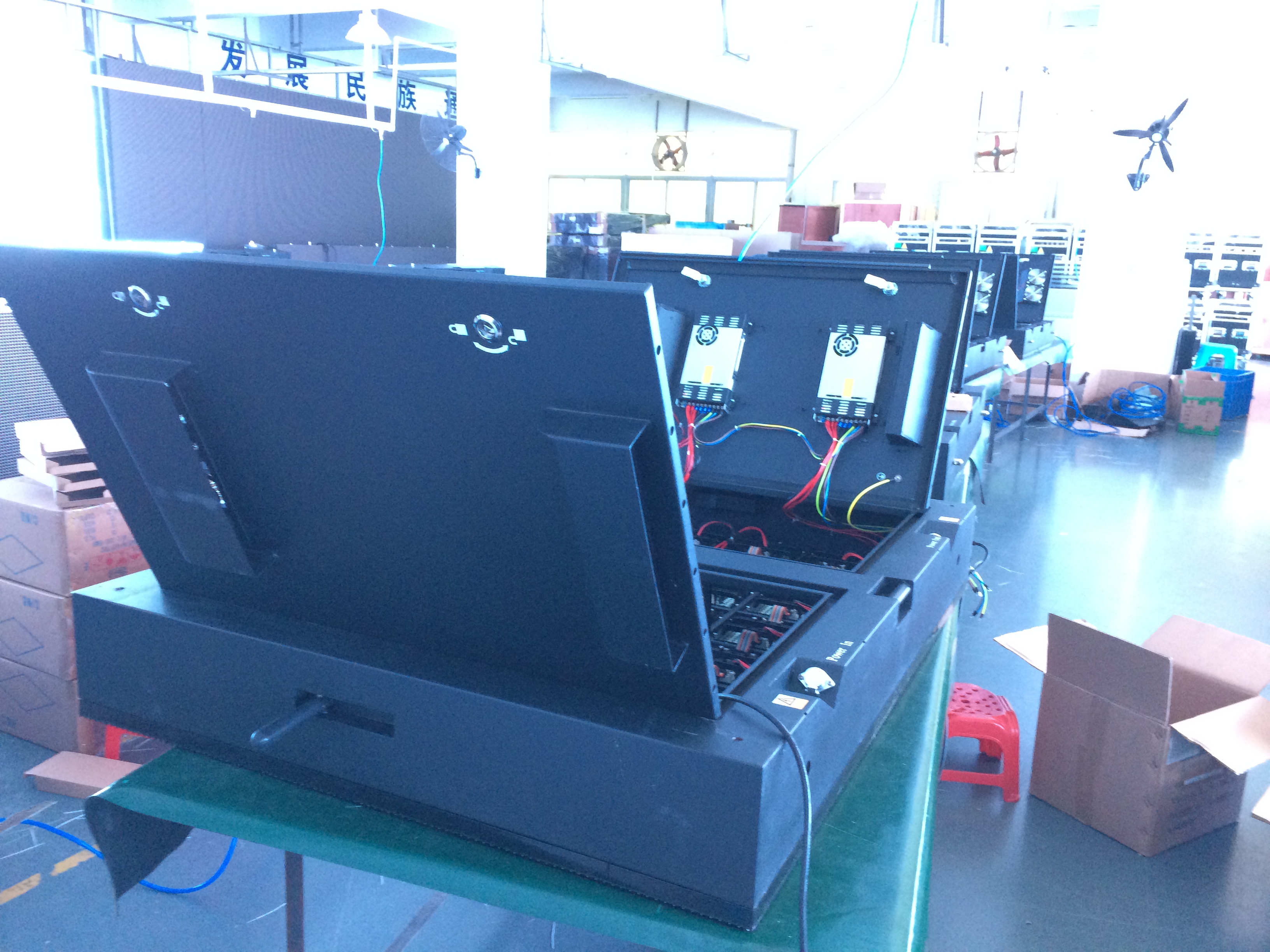

| Cabinet / Frame Specification |
| 1 | Cabinet Size(WXH) | W 1024mm × H1024mm X 150pcs |
| 2 | Cabinet Resolution | W128 dots × H 128dots |
| 3 | Module Quanity | 4pcs x 8pcs = 32pcs |
| 4 | Pixel Density | 15625 dots/m2 |
| 5 | Material | Epoxy paint coated cold steel box |
| 6 | Cabinet Weight | 40Kg /pcs |
| 7 | Mounting system | Fixed with 4pcs M10 bolts |
| 8 | Ingress protection (front/rear) | IP65/IP65 |
| 9 | Panel service access | Back service |
| Screen Parameters |
| 5 | Brightness | ≥7000cd / sq.m. |
| 6 | View Angle | Horizontal 120° Vertical 60° |
| 7 | Recommended best viewing distance | 10 meter ~ 200 meter |
| 8 | Input voltage (nominal) | 110 V.AC to 240V.AC |
| 9 | Input power frequency | 50 to 60 Hertz | |
| 10 | Input power (max) | 800 w/sq.m. |
| 11 | Input power (average) | 800 w/sq.m. |
| 12 | Screen weight | 45kg/sq.m. |
| 13 | Grey scale (linear) | 65,536 levels per color |
| 14 | Operating temperature range | ﹣30℃ to +60℃ |
| 15 | Humidity operating | 10% ~ 90% /RH |
| 16 | Colors | 281 Trillion |
| 17 | Contrast ratio | 1000:01:00 |
| 18 | Processing depth | 16 bit |
| 19 | Video frame rate | 60 Hertz |
| 20 | Display refresh rate | 900～3840 Hertz |
| 21 | Lifetime (50% brightness) | ≥100,000 Hours |
| 22 | Source compatibility (with video processor) | YC, VGA, DVI, YUV, SDI, CVBS,GD-SDI |
| 23 | Data interconnection | UTP Cat 5/Optical Fiber |
| 24 | Control system | Synchronous/asynchronous control system |
